Product introduction

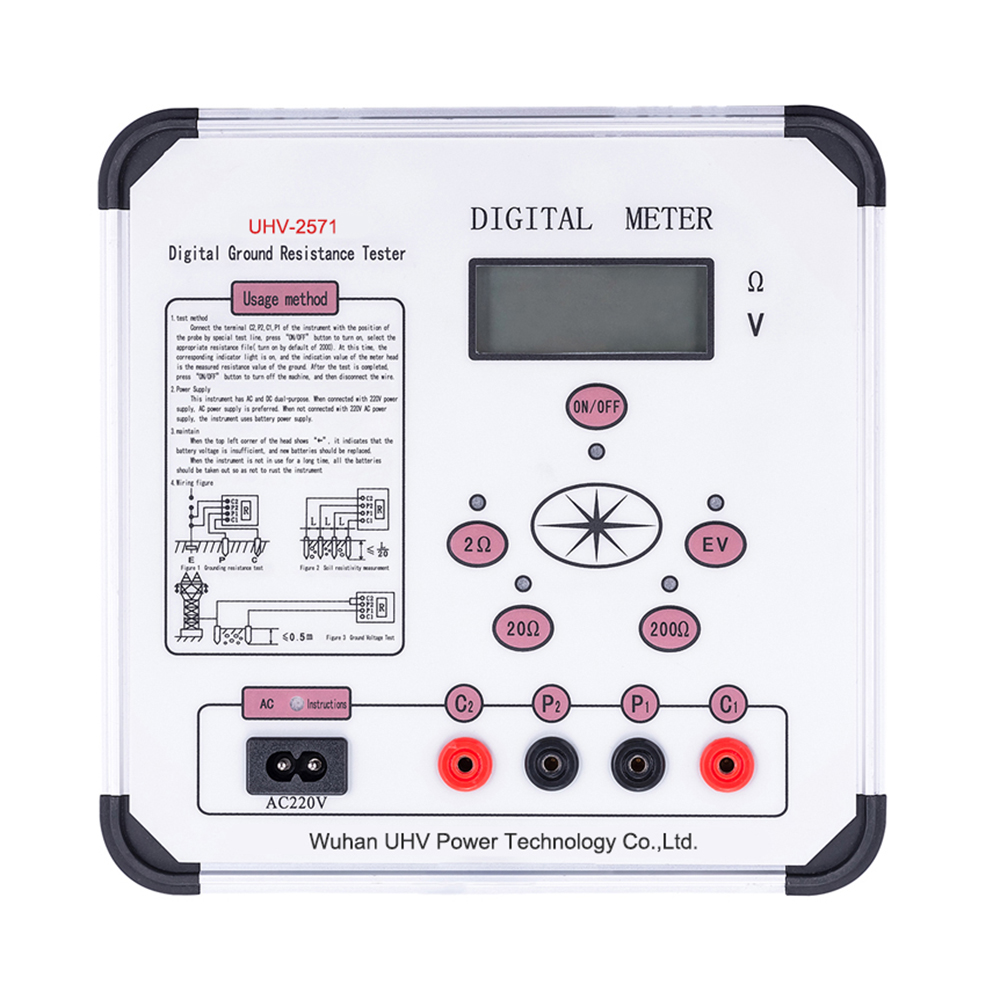

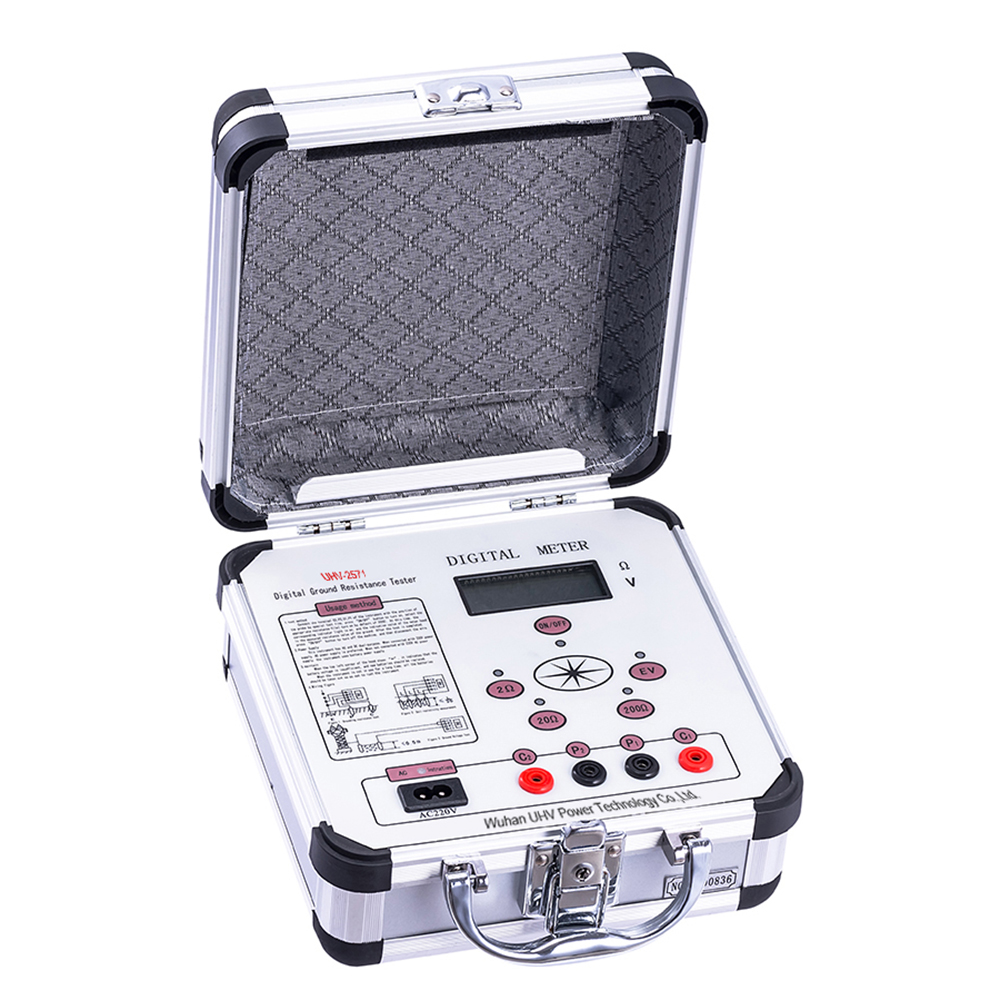

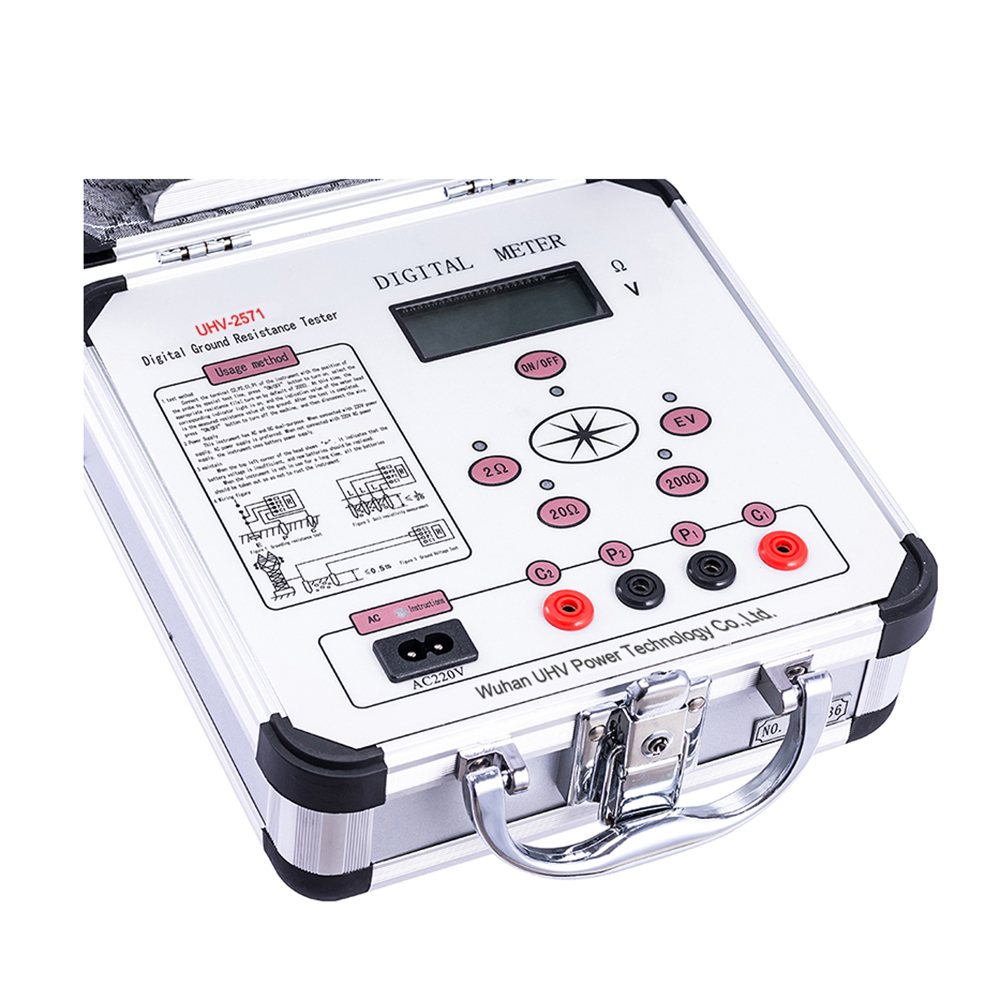

The ground resistance measuring instrument is a new type of ground resistance measuring instrument, which combines the three-end button and four-end button measuring methods by using advanced medium and large scale integrated circuit instead of the traditional manual manual power generation.
The working principle is that the DC/AC converter in the machine changes DC into low-frequency constant current of AC, and the circuit is formed by auxiliary ground electrode C and measured object E, which generates AC voltage drop on the measured object, and is fed into AC amplifier for amplification through auxiliary ground electrode P, and then sent to the meter head for display through detection. With the aid of multiplying power switch, three different quantity limit can be obtained: 0 ~ 2 Ω, 0 ~ 20 Ω, 0 ~ 200 Ω.
The earth resistance measuring instrument is suitable for measuring the earth resistance of various devices and the conductor resistance value of low resistance in electric power, post and telecommunication, railway, communication, mining and other departments. The table also measures soil resistivity and ground voltage.
 |  |  |
Production functions
Ground resistance measurement — Measures the ground resistance of grounding systems and grounding electrodes. Core measurement function with a range of 0 to 200Ω.
Low resistance measurement — Measures the resistance of low-resistance conductors.
Soil resistivity measurement — Used for measuring soil resistivity, applicable to grounding system design and grounding performance evaluation.
AC voltage measurement — Measures on-site AC / power frequency voltage with a range of 0 to 19.99V, assisting in evaluating power frequency interference at the grounding test site.
Các thông số kỹ thuật
| Điều kiện | Nhiệt độ môi trường | 0℃～+45℃ |
| Độ ẩm tương đối | 85%RH | |
| Phạm vi đo và dòng điện không đổi (RMS)) | Sức chống cự | 0～2Ω(10mA),2～20Ω(10mA),20～200Ω(1mA) |
| Vôn | AC0～19.99V | |
| Độ chính xác và độ phân giải của phép đo | Độ chính xác | 0～0.2Ω±3%±1d |
| 0,2Ω～199,9Ω±1,5%±1d | ||
| 1～19,99V<±3%±1d | ||
| Nghị quyết | 0,001Ω,0,01Ω,0,1Ω,0,01V | |
Lỗi đo gây ra bởi phụ trợ điện trở nối đất và điện áp nối đất | Cho phép điện trở nối đất phụ | RC(Giữa C1 và C2) |
| 0～2Ω,2～20Ω≤1kΩ | ||
| 20～200Ω<2kΩ | ||
| RP(Giữa P1 và P2) < 40kΩ,lỗi<±5% | ||
Điện áp nối đất cho phép (hiệu dụng giá trị tần số nguồn) | 5V, lỗi ≤ ± 5% | |
| Nguồn điện và mức tiêu thụ điện năng | Mất điện tối đa | 2W |
| DC | Pin 8×1,5V(AA,R6) | |
| AC | 220V/50Hz | |
| Khối lượng và trọng lượng | Kích thước | 220×200×105mm3 |
| Cân nặng | 1,4kg |
Không có gìktên：Máy đo điện trở đất; Earth Resistance Mete
Đặc trưng
1、Dụng cụ đo điện trở nối đất được chế tạo bằng hợp kim nhôm có độ bền cao làm vỏ. Để ngăn chặn nhiễu tần số công nghiệp và tần số rf, chế độ phát hiện và theo dõi đồng bộ vòng khóa pha được áp dụng trên mạch và trang bị bộ lọc tụ điện chuyển mạch để giúp thiết bị có khả năng chống nhiễu tốt hơn.
2、DC/AC conversion technology is adopted to convert DC into AC low-frequency constant current for easy measurement.
3、 Allow auxiliary grounding resistance of 0 ~ 1.8kω (RC), 0 ~ 40KΩ (RP) shall not affect the result of measurement.
4、The grounding resistance measuring instrument does not need manual adjustment and balance, 3(1/2) position LCD display, in addition to measuring the earth resistance, but also can measure low resistance conductor resistance, soil resistivity and ac voltage. If the test circuit does not display &ldquo on the header; 1 & throughout; Stands for overflow, in line with conventional measurement habits.
Application Scenarios
Substation grounding system testing
Used for testing the grounding resistance of grounding grids and grounding devices in substations and distribution stations.
Power equipment grounding testing
Used for grounding performance testing of electrical equipment such as transformers, switchgear, distribution cabinets, and motors.
Lightning protection grounding testing
Used for grounding resistance testing of lightning protection devices on buildings, equipment rooms, communication facilities, and other structures.
Building grounding system testing
Used for grounding system testing of factories, office buildings, residential buildings, and large structures.
Communication base station grounding testing
Used for grounding resistance testing of facilities such as communication base stations and communication rooms.
New energy power plant grounding testing
Used for grounding system testing of photovoltaic power plants, wind farms, energy storage power stations, and similar facilities.
Grounding system construction acceptance
After completion of new grounding systems, used to measure grounding resistance and determine whether design requirements have been met.
Grounding system operation and maintenance inspection
Used for regular grounding resistance testing in power, telecommunications, industrial enterprises, and other facilities to identify abnormal grounding performance.
Soil resistivity testing
Before constructing a grounding system, used to measure on-site soil resistivity, providing a basis for the design of grounding electrodes and grounding grids.
Frequently Asked Questions
Q:Is the tester suitable for electrical environments with interference?
A:Yes. The tester uses filtering and phase-locked detection technology to improve resistance to power-frequency and RF interference.
Q:Does it require manual balancing before testing?
A:No. The instrument uses an automatic measurement and balancing system, which simplifies field operation.
Q:What applications is it suitable for?
A:It is suitable for grounding tests in power systems, substations, buildings, lightning protection systems, communication base stations, industrial facilities, and renewable energy plants.
Q:What is the UHV-2571 Digital Ground Earth Resistance Meter used for?
A: The UHV-2571 is designed to measure grounding resistance, low-resistance conductors, soil resistivity, and AC voltage. It can be used for grounding system testing in substations, power equipment, buildings, communication facilities, industrial facilities, and renewable energy plants.
Q:What is the difference between grounding resistance and soil resistivity?
A:Grounding resistance describes the resistance between a grounding system and the earth, while soil resistivity describes the electrical resistivity of the soil itself. Soil resistivity testing is commonly used during grounding system design and site evaluation.
