Product introductions

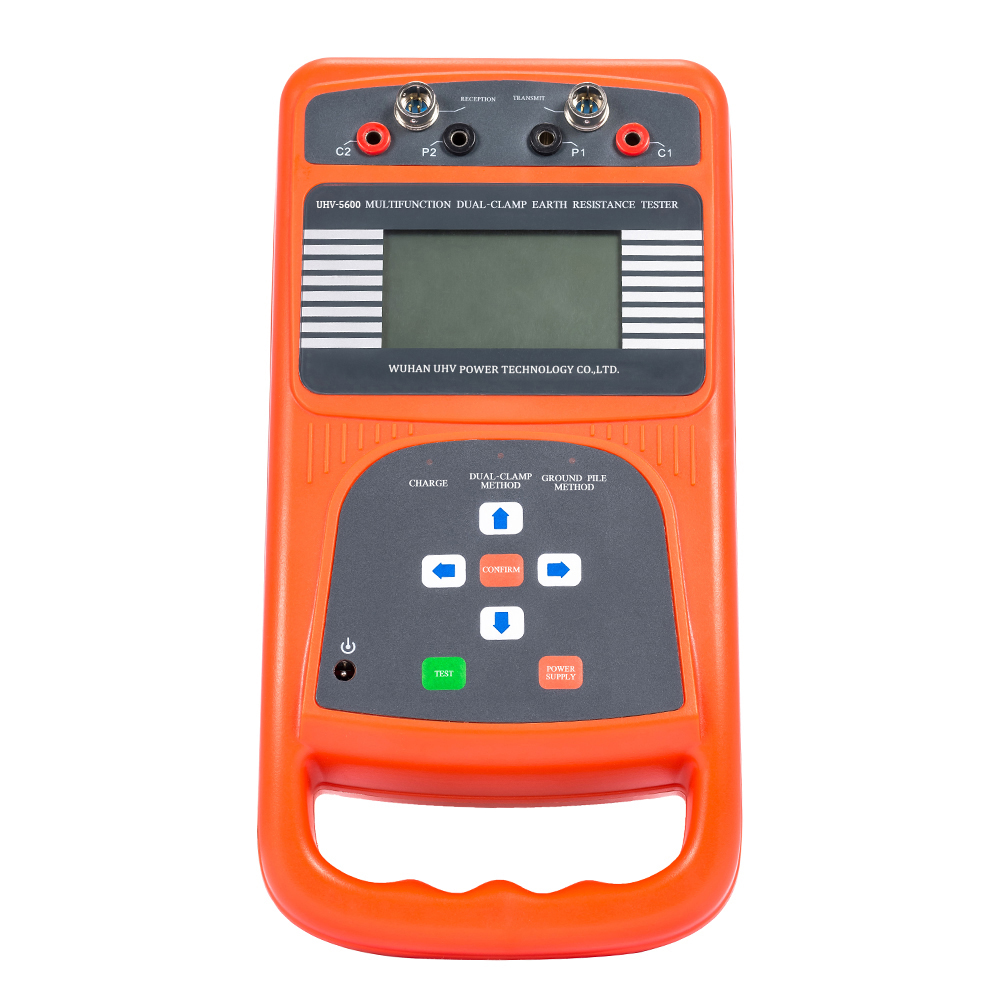

The clamp-type earth resistance tester produced by Wuhan UHV is a hand-held earth measuring instrument.Clamp Ground Resistance Tester is equipped with the necessary accessories for testing.Simple and intuitive to operate,operators only need to read the instructions and do not have to attend special training to be able to operate.
Clamp Ground Resistance Tester is used for measuring grounding resistance and evaluating grounding quality on this basis. This instrument is based on our years of experience in the production and development of grounding resistance and electrical installation test equipment.
Excellent grounding system is an important guarantee for safe and reliable operation of electric power, telecommunication and electrical equipment.The magnitude of grounding resistance is the basis for judging the quality of grounding system.Accurate, fast, simple and reliable grounding resistance measurement method has become an urgent need of technical progress in the field of lightning protection grounding. Clamp Ground Resistance Tester is suitable for telecommunication, electric power, weather, machine room, electric power distribution line, tower transmission line, gas station, factory grounding network, lightning rod, etc.
Clamp Ground Resistance Tester not only has the traditional function of measuring Ground Resistance with auxiliary poles, but also has the unique function of measuring Ground Resistance without auxiliary poles. It changes the traditional measuring principle and means of testing grounding resistance: Using the double-clamp non-contact measurement technology, there is no need to use auxiliary poles, and the grounding body is not isolated from the load, so the on-line measurement is realized. In the single point grounding system, strong interference and other conditions, can be used to measure the auxiliary pole.
Production functions
Ground resistance measurement — Measures the ground resistance of grounding systems to assess grounding quality.
Dual-clamp method testing — Requires no disconnection of grounding conductors, suitable for rapid measurement in multi-point grounding and complex grounding sites.
Ground rod method testing — Supports traditional ground rod measurement, suitable for single-point grounding and other scenarios.
Strong anti-interference measurement — Suppresses power grid harmonic interference such as 50Hz and 100Hz, enabling measurement even in high-interference environments like high-voltage substations.
Wide range, high-resolution measurement — Ground resistance measurement range: 0.01Ω to 200Ω, with a minimum resolution of 0.01Ω.
Measurement data storage — Built-in storage function, capable of saving up to 200 sets of test data for on-site recording and subsequent review.
Large-diameter clamp opening — Standard Φ50mm clamp opening, capable of clamping thicker grounding conductors such as flat steel and steel bars.
 |  |  |
Thông số sản phẩm
| Phạm vi đo điện trở đất | Phương pháp kẹp đôi | 0,01Ω～200Ω |
| Phương pháp đóng cọc | 0,01Ω～200Ω | |
| lỗi | Phương pháp kẹp đôi | ±3%±2 chữ số |
| Phương pháp đóng cọc | ±2%±2 chữ số | |
| Độ phân giải tối thiểu | 0,01Ω | |
| Kích thước hàm | Φ50mm | |
| Khả năng lưu trữ | 200 nhóm dữ liệu | |
| Nhiệt độ làm việc | 0℃～+50℃ | |
| Nguồn cung cấp năng lượng | 8 pin sạc niken hiđrua kim loại hoặc pin AA thông thường | |
| Cân nặng | 0,8kg (đã bao gồm pin) | |
| Kích thước | 265×130×65mm3 | |
Tên nick: Earth Resistance Tester; ground resistance tester
Features
1、Double clamp method/ground pile method: suitable for any grounding site, multi-point or single-point grounding, can be normally tested
2、Strong anti-interference ability: generate high frequency current to filter 50Hz, 100Hz and other harmonic interference current in the commercial power supply. Even in the environment of 500kV substation, accurate measurement can be achieved
3、 Máy đo điện trở nối đất đa chức năng kẹp kép có dải đo rộng và độ phân giải cao: dải đo dao động từ 0,01Ồ~ 200 & Omega; , độ phân giải 0,01ỒĐối với 0,7 & Omega; Điện trở đất sau đây cũng có thể được đo chính xác.
4、Large jaw design: the diameter of jaw is 50mm(standard configuration), which can meet the requirement of using flat iron/steel as grounding lead. Special tong size can be customized according to customer requirements
5、Large-capacity data storage: 200 sets of measurement data can be stored

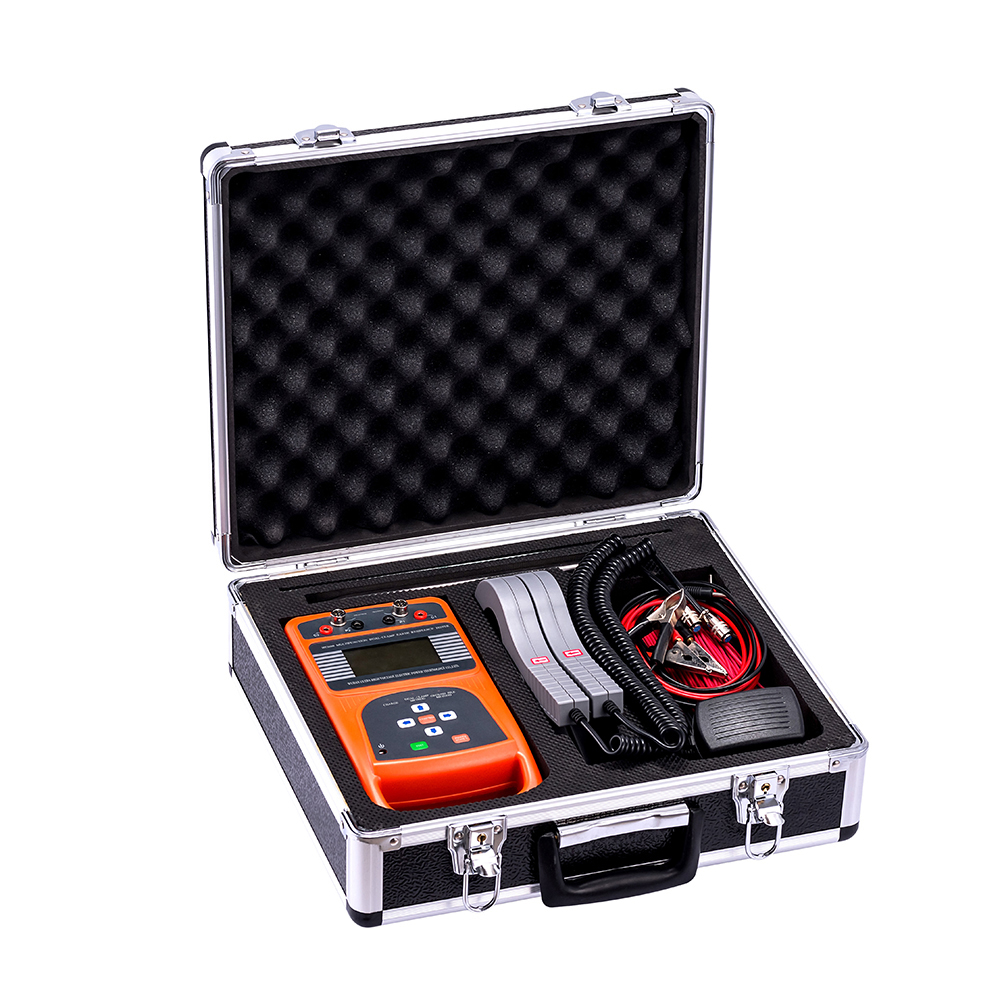

6、Simple operation, single operation: Chinese operation interface, small size, light weight, explosion-proof portable box, easy to carry field measurement
Application Scenarios
Substations and power plants — Testing grounding grids and equipment grounding resistance in substations and power plants.
Transmission lines — Testing the grounding condition of transmission poles and towers.
Distribution systems — Testing grounding of distribution cabinets, distribution equipment, and lines.
Communication base stations — Testing lightning protection grounding and work grounding systems at base stations.
Building lightning protection systems — Testing grounding devices such as lightning rods and lightning strips on buildings.
Petrochemical and other industrial sites — Testing anti-static grounding and safety grounding of equipment.
Large equipment grounding systems — Used for grounding testing of motors, transformers, cabinets, and other equipment.
Routine maintenance of grounding systems — Used for periodic ground resistance inspection and fault diagnosis in power, telecommunications, and other industries.
Frequently Asked Questions
Q:Why should grounding resistance be tested regularly?
A:Grounding resistance can change over time because of corrosion, soil conditions, loose connections, construction work and environmental changes. Regular testing helps identify potential grounding problems and improves the safety and reliability of electrical systems.
Q: What test methods does the ground resistance tester support?
A: It supports both the dual-clamp method and the ground rod method. The test method can be selected based on different grounding systems and on-site conditions.
Q: Can the ground resistance tester be used in high-interference environments?
A: Yes. It features strong immunity to power frequency and harmonic interference, making it suitable for complex electrical environments such as substations.
Q: What is the delivery lead time for bulk orders?
A: The delivery lead time depends on the order quantity, product configuration, and customization requirements. The specific time is subject to order confirmation.
Q:What is a double clamp ground resistance test?

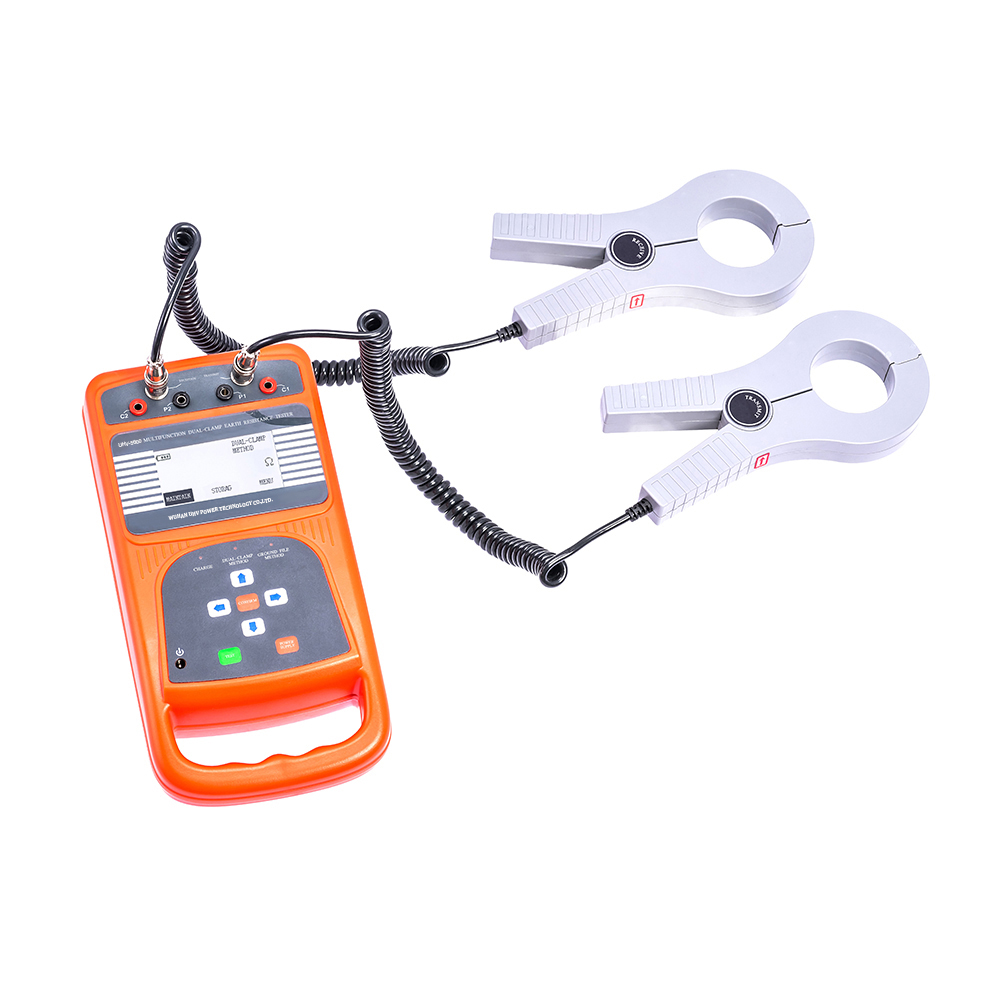

A:A double clamp ground resistance test uses two clamps around the grounding conductor. One clamp generates the test signal while the other detects the resulting current, allowing the instrument to calculate the resistance of the grounding loop without requiring traditional auxiliary ground rods in suitable systems.
Looking for a reliable UHV-5600 double clamp ground resistance tester manufacturer and supplier? We are a professional ground resistance tester factory specializing in the development and production of high-quality electrical testing equipment for global customers. With direct factory supply, we provide competitive wholesale prices for distributors, electrical contractors, testing companies, and bulk buyers. Whether you need standard UHV-5600 testers or OEM solutions, our experienced team can provide technical support and help you select the right configuration for your application. Contact us today for the latest UHV-5600 price and a detailed quotation, and let us provide a reliable solution for your grounding resistance testing needs.
