Product Introduction
To reduce reactive power loss in power systems, shunt capacitor banks are commonly used to improve the power factor. In practical applications, capacitor compensation devices tend to have a relatively high accident rate due to the inherent characteristics of capacitor operating conditions. Therefore, regular inspection of capacitor banks and early detection of potential defects are essential to preventing fault escalation.

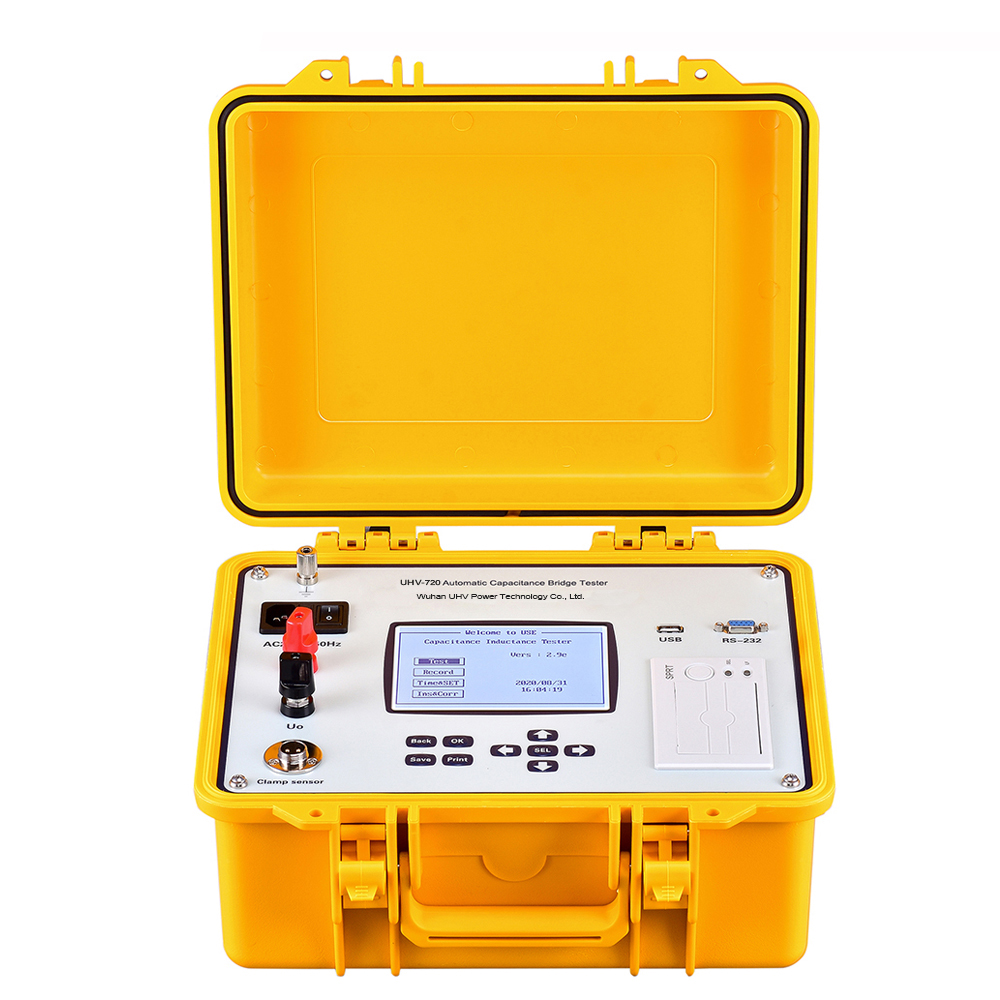

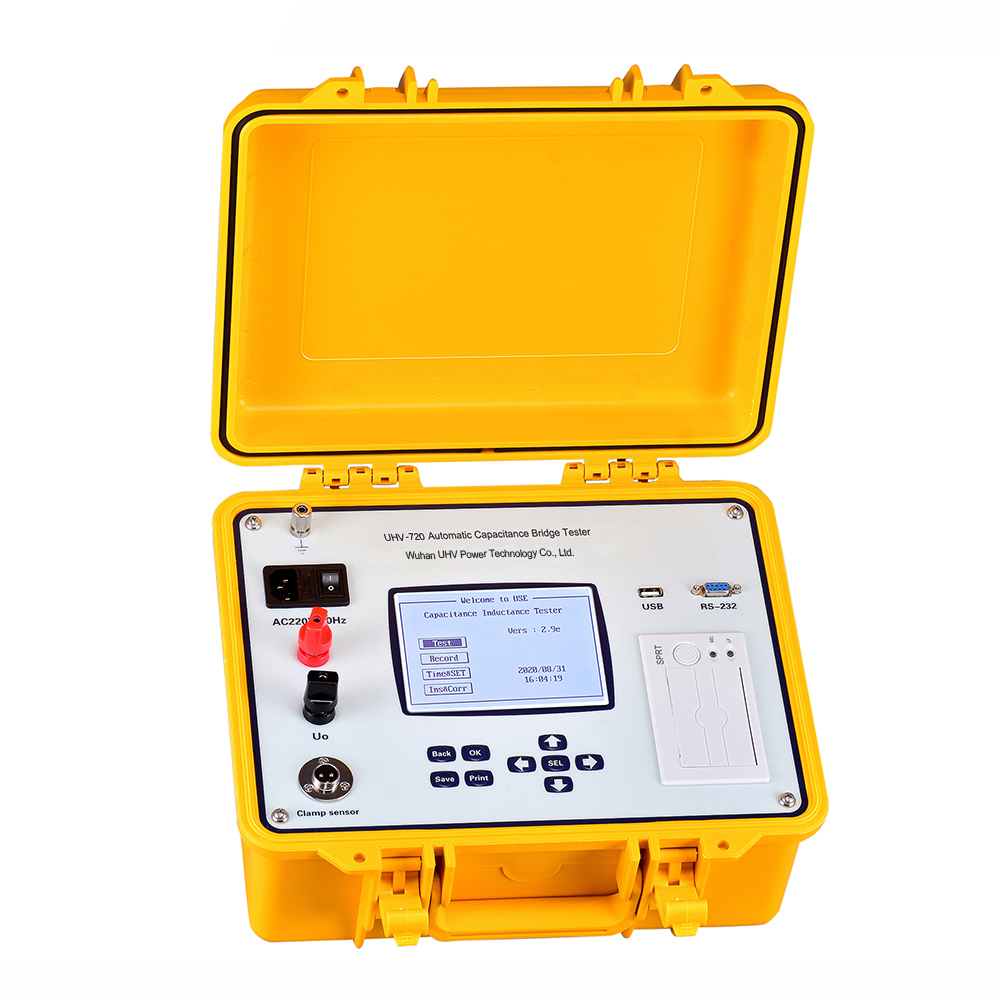

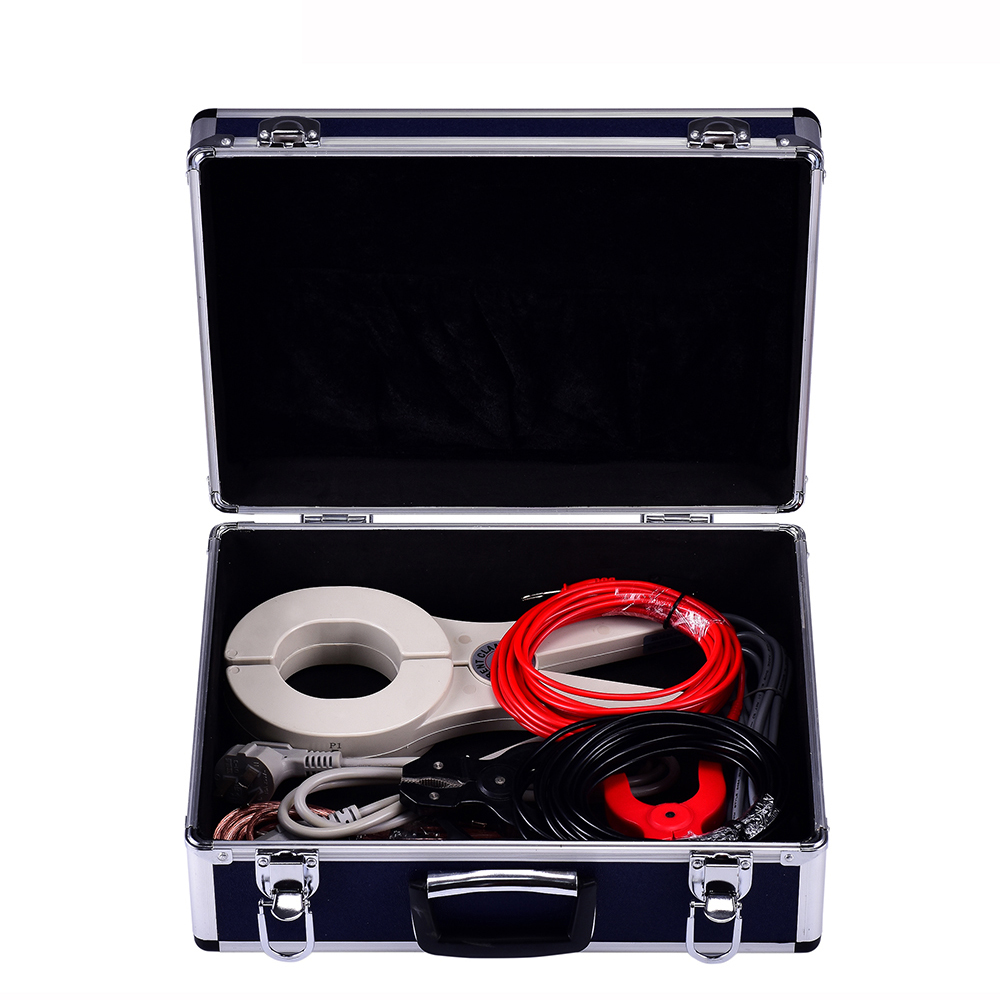

In field applications, capacitors within a bank are connected in parallel. When using a conventional capacitance meter, workers must disconnect the leads to perform measurements—a process that is labor-intensive and prone to wiring errors. To address this challenge, our company has developed a new Capacitance and Inductance Tester. This instrument allows measurement of individual capacitors within a parallel-connected bank without disconnecting any leads, and is also capable of measuring inductance and current. With convenient wiring and simple operation, it significantly reduces the workload of maintenance personnel, greatly improves on-site testing efficiency, and ensures the reliable operation of the power grid.
Product Characteristics
1. Capacitance Measurement Without Disconnection: The instrument can measure individual capacitors within a group of parallel-connected capacitors without disconnecting any leads, greatly simplifying testing. It simultaneously displays measured voltage, current, loss, capacitance, frequency, impedance, and other relevant data.
2. Inductance Measurement: In addition to displaying the measured inductance value, the instrument also shows voltage, current, loss, capacitance, frequency, impedance, and other parameters.
3. Support for Various Connections: In addition to testing individual capacitors within a group, the instrument can also measure capacitors connected in Δ-type (delta) and Y-type (wye) configurations.
4. User-Friendly Display and Interface: Features a 320×240 large-screen LCD with Chinese menu prompts, making operation simple and intuitive.
5. Built-in Large-Capacity Memory: Each test option can store up to 256 sets of data in the built-in non-volatile memory.
6. USB Data Export: Equipped with a built-in USB controller interface for exporting instrument memory data, facilitating easy report generation.
7. High-Precision Real-Time Clock: Includes a built-in high-precision real-time clock for accurate date and time calibration.
8. Built-in Thermal Printer: Comes with a high-speed micro thermal printer for printing measurement results and historical data.
9. Overcurrent Protection: Features test power supply overcurrent protection to ensure the instrument remains undamaged even in the event of a power supply output short circuit.
 |  |  |
Các thông số kỹ thuật
| Phạm vi đo lường | Capacitance：2uF～2000uF |
| Inductance：5mH～5000mH | |
| Current：20mA～2000mA | |
| Đo lường độ chính xác | Capacitance：± (1% reading + 2 words) |
| Inductance：± (1% reading + 5 words) | |
| Current：± (1% reading + 2 words) | |
| Kích thước | 345mm×295mm×175mm |
| Trọng lượng dụng cụ | 7 kg |
Working condition
| Nhiệt độ môi trường xung quanh | -10℃～50℃ |
| Độ ẩm môi trường xung quanh | 85%RH |
| Nguồn điện làm việc | AC220V±10% |
| Tần số nguồn | 50±1Hz |
Application Scenarios
Substation shunt capacitor bank testing
Used to measure parameters such as capacitance and current of individual capacitors in substation shunt capacitor banks, determining whether there are issues such as abnormal capacitance or performance degradation. The device supports measurement without disconnecting parallel connections, improving on-site testing efficiency.
Substation capacitor preventive testing and maintenance
Used for regular inspection, preventive testing, and condition assessment of substation capacitor banks. By periodically measuring and saving test data, results from different time periods can be compared, enabling timely detection of capacitor performance changes and reducing the risk of equipment failure.
Distribution station / distribution room reactive power compensation capacitor testing
Used to test capacitors in reactive power compensation cabinets in distribution systems, determining whether capacitor capacitance is normal, and identifying issues such as insufficient reactive power compensation capability or power factor degradation caused by capacitor performance decline.
Industrial enterprise reactive power compensation system maintenance
Applicable to reactive power compensation system maintenance in industrial facilities such as steel, chemical, cement, mining, petrochemical, and large manufacturing enterprises. Can be used to check the operating condition of shunt capacitors and related reactors, helping enterprises promptly identify abnormal equipment.
Capacitor bank fault diagnosis and abnormal capacitor identification
When capacitor banks exhibit abnormal capacitance, reduced compensation performance, or operational faults, each capacitor can be individually tested and data compared to quickly locate abnormal units, providing a basis for subsequent repair, replacement, and fault analysis.
Q: Can this device test individual capacitors in a shunt capacitor bank?
A: Yes. One of the main advantages of the device is that it can measure individual capacitors within a shunt capacitor bank without the need to disconnect parallel connections one by one, improving on-site testing efficiency.
Q: Can this device be used for reactive power compensation cabinets?
A: Yes. It is suitable for capacitor testing in distribution stations, distribution rooms, and industrial reactive power compensation systems, used to determine whether capacitor capacitance is normal and to identify issues such as reduced compensation capability.
Q: Why is regular testing of shunt capacitors necessary?
A: After long-term operation, capacitors may experience capacitance decline, performance changes, or abnormal operating conditions. Regular testing can promptly identify abnormalities, preventing faults from affecting the normal operation of the entire reactive power compensation system.
Q: Why choose our company's products?
A:We are a professional manufacturer and supplier of high-voltage power testing equipment in China.Our products are designed to meet the on-site testing needs of substations, distribution systems, and industrial power equipment. Our products feature strong professionalism, high testing efficiency, convenient operation, portability for field use, and comprehensive data management capabilities, helping customers improve the efficiency of power equipment testing and maintenance.
