Introduction:

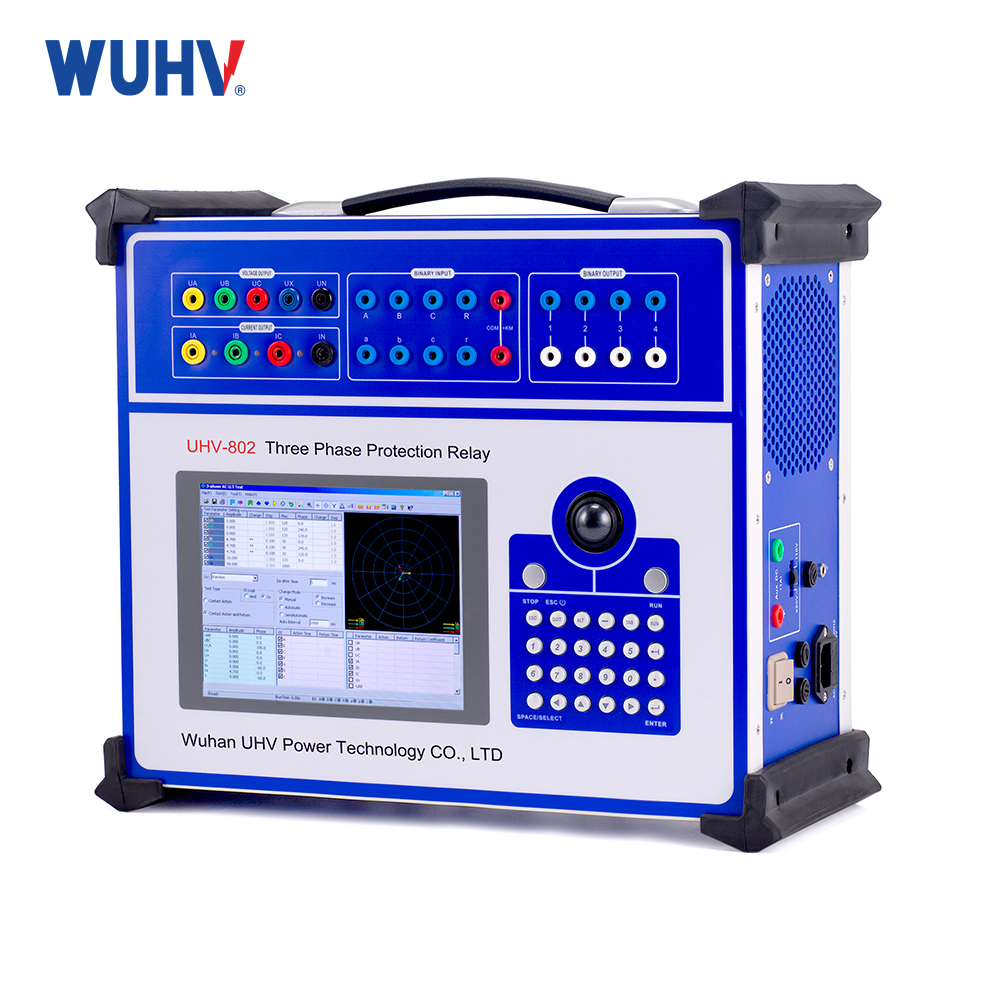

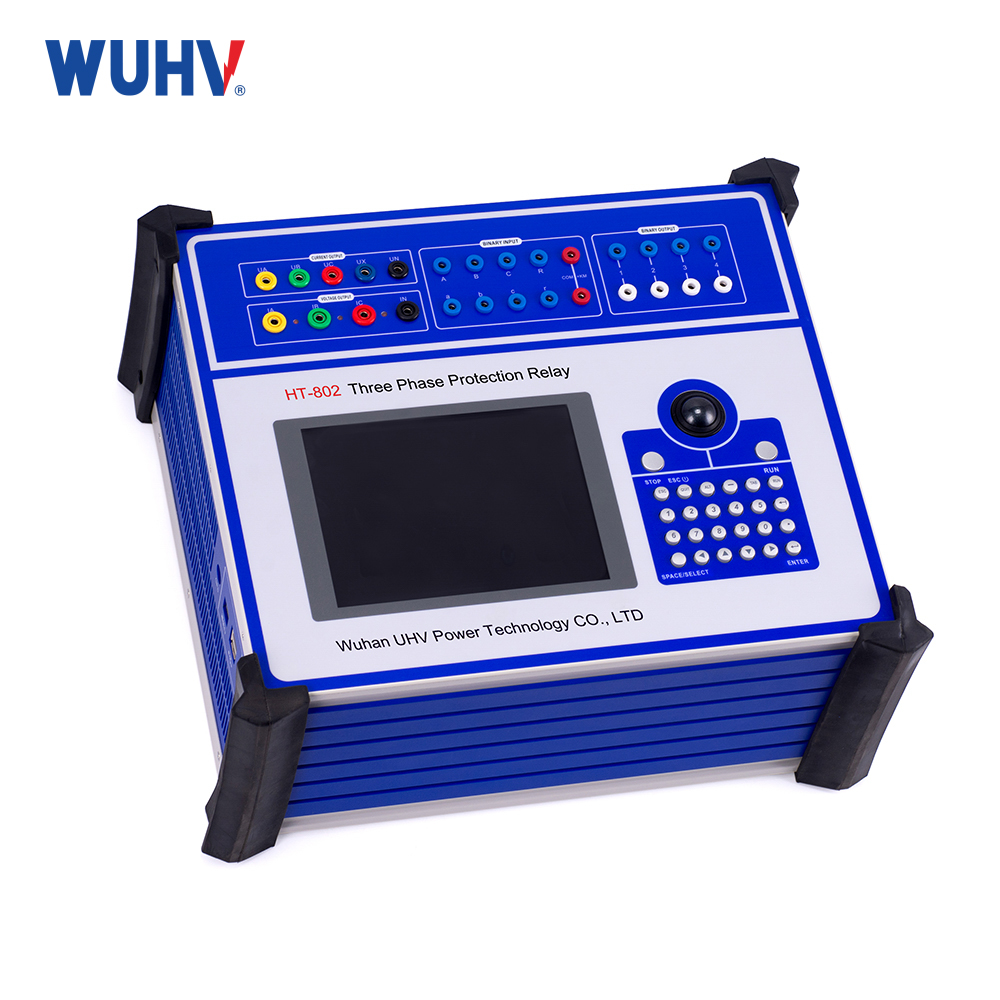

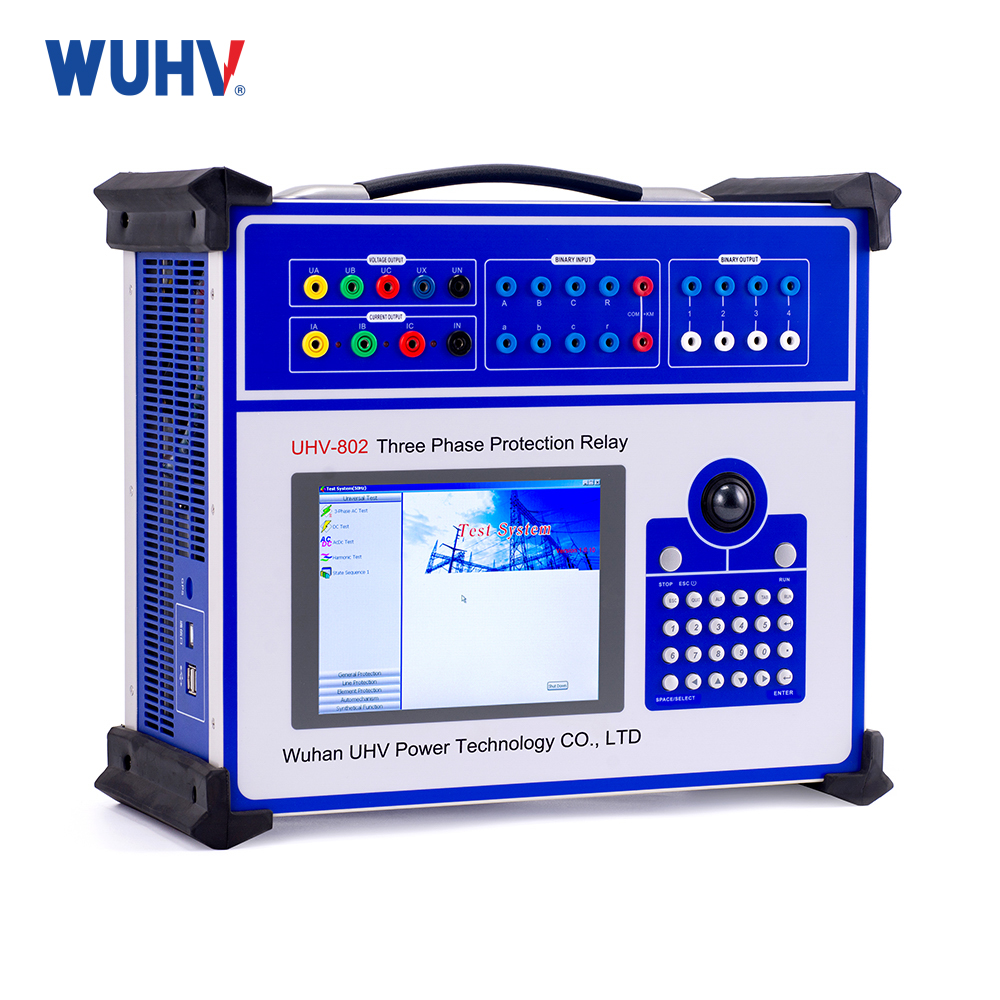

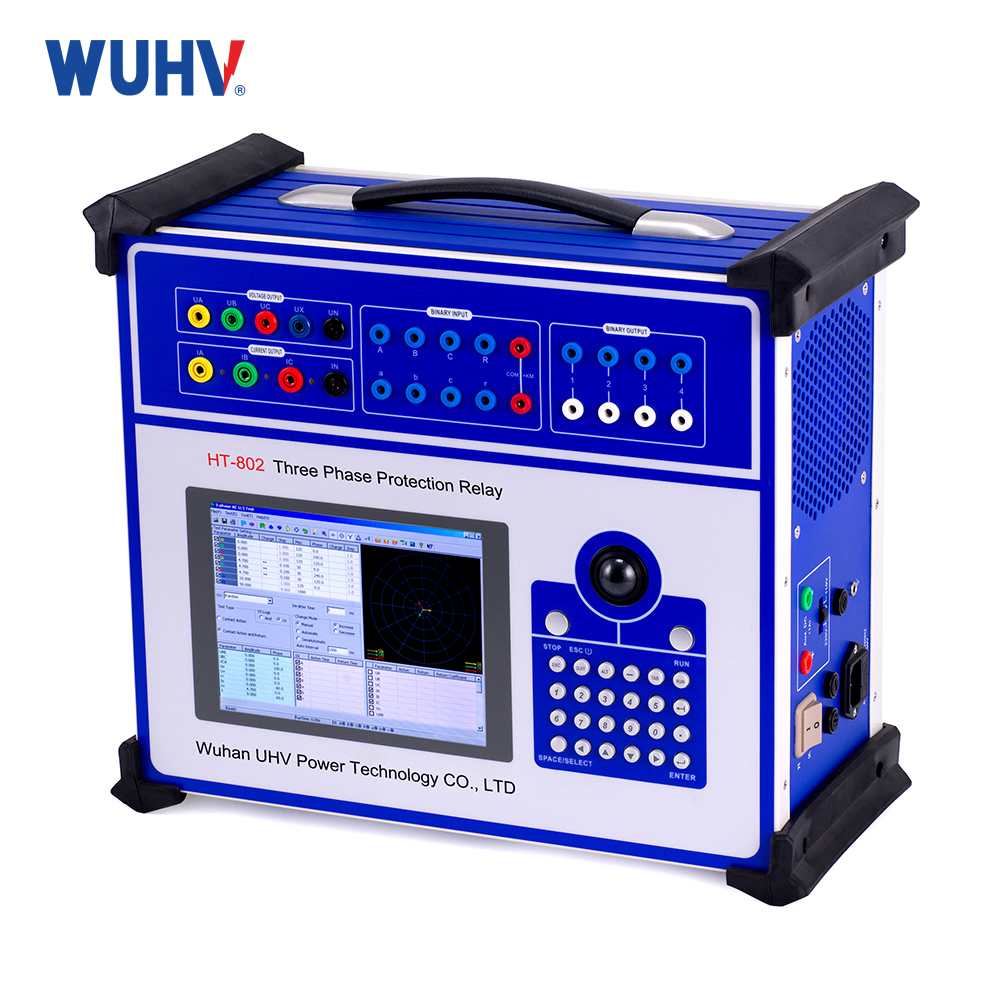

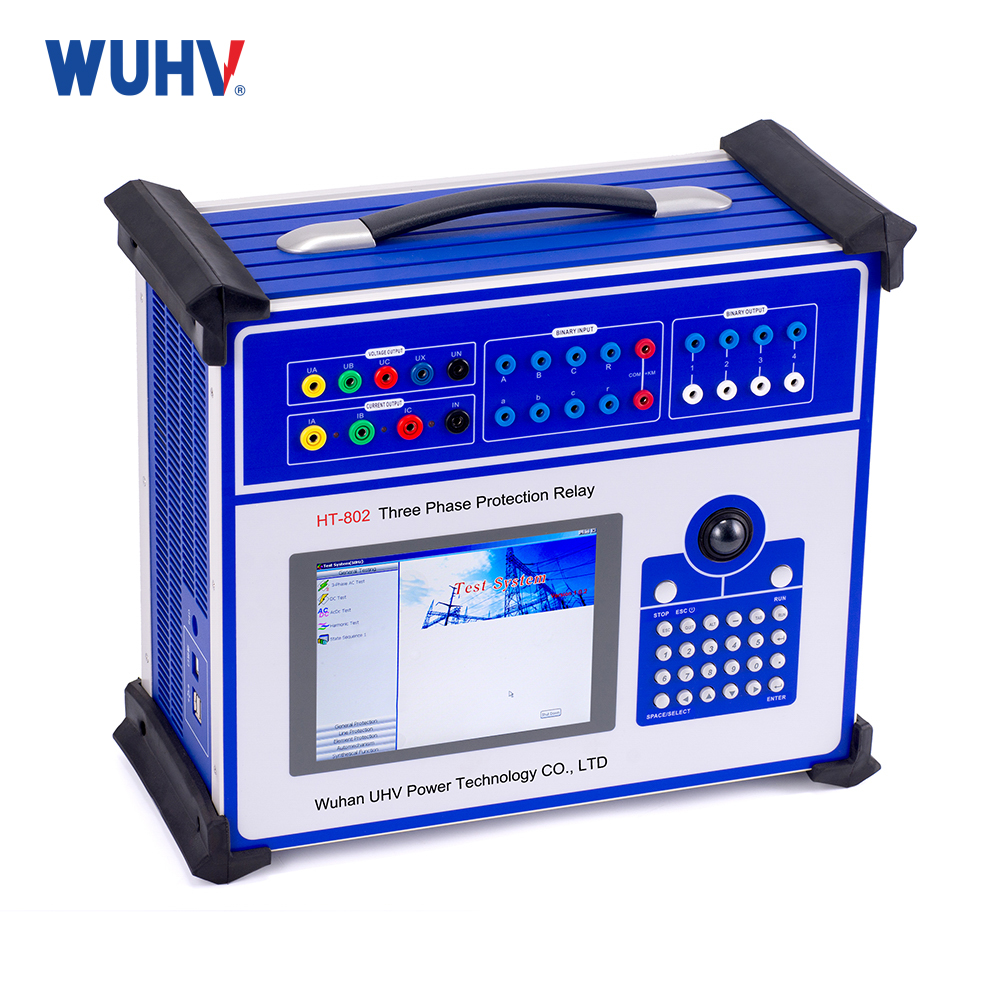

UHV-802 uses a high-performance industrial computer as the control computer, which can directly run the Windows operating system. The 6.4 "TFT true color LCD display, trackball, and optimized keyboard are configured on
the panel of this tester and can be used without an external mouse and keyboard. The USB interface, 10-100M network card, and serial communication interface are located on the backplane of this tester, allowing for easy
access to data, communication data, and software upgrades. The entire process and test results will be displayed on the LCD. The English operation interface of the entire equipment is very friendly and convenient. The trackball
and keyboard on the panel will perform operations. Simple and convenient operation, easy to master. The operator only needs a little computer knowledge. The panel is also equipped with keyboard and mouse interfaces. If
you want to use an external mouse and keyboard, you can operate this tester like a desktop computer by inserting the corresponding interface.
Features:
1、Flexible Output Combination
Standard 4-phase voltage and 3-phase current output, configurable for various protection tests. Each phase supports 120V voltage; three-phase current up to 120A. The fourth-phase Ux is a programmable voltage source for
3U0, synchronization check, or user-defined outputs.
2、User-Friendly Operation
Equipped with a trackball mouse, optimized keyboard, and large TFT LCD display. Runs on a built-in English Windows operating system—ready to use upon startup with intuitive controls.
3、Dual Operation Modes
Supports both standalone operation and external PC control, with identical functionality across both modes for versatile testing workflows.
4、High-Fidelity Linear Amplifier
Utilizes a modular linear amplifier (non-switching), ensuring clean, stable waveforms from high to low currents without medium/high-frequency interference.
5、High-Performance Host
DSP-controlled output for fast operation, strong real-time processing, wide frequency bandwidth, and high-resolution D/A conversion. Compact, lightweight, and portable design suitable for field testing.
6、Advanced Software Capabilities
Enables automated, complex calibration, including protection setting verification, fault replay, real-time data storage, vector diagram display, and report printing.
7、Independent DC Power Supply
Integrated adjustable DC power outputs: 110V and 220V for auxiliary testing needs.
8、Comprehensive Interfaces
Built-in keyboard and mouse for standalone use, plus external I/O support via USB and RS232 ports for computer and peripheral connectivity.
9、Complete Self-Protection Features
Optimized thermal design, hardware protection mechanisms, soft-start power function, and software-based fault diagnosis with output lockout.
10、Compact and Integrated Design
Highly integrated, lightweight single-unit structure utilizing advanced technology for excellent portability without compromising functionality.
