The power system is like the circulatory system of the human body, and the health of power equipment directly affects the stable operation of the entire system. Among many "health killers", partial discharge is one of the "culprits" that cause insulation aging, equipment damage, and even major accidents. How can we promptly detect and 'diagnose' this latent danger? The answer is - digital partial discharge detector!

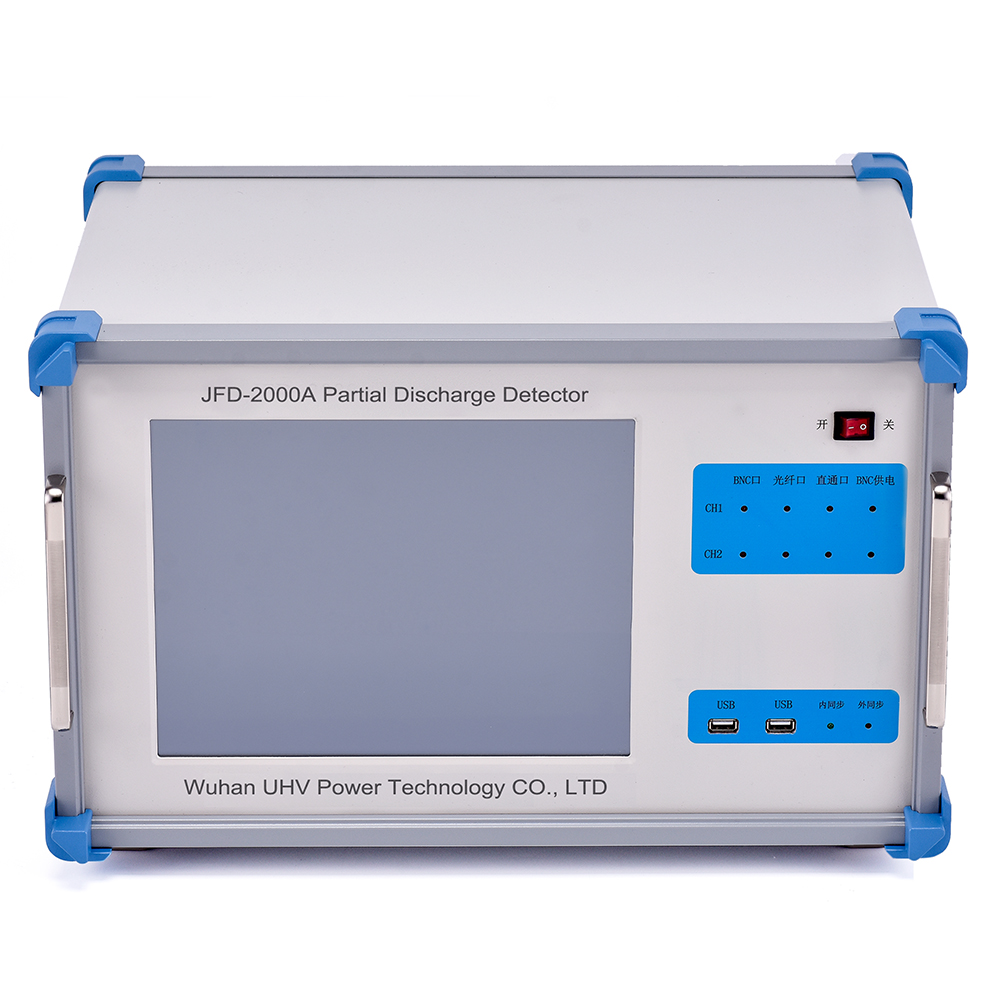

What is a digital partial discharge detector?
Simply put, this is a high-tech "stethoscope" and "microscope" specifically designed to capture the weak but highly destructive "partial discharge" phenomena inside electrical equipment. It converts the electrical pulse signals generated inside the device into digital information through highly sensitive sensors, and then undergoes complex analysis and processing, allowing us to intuitively understand key information such as discharge intensity, frequency, and type. This is like performing a precise 'magnetic resonance imaging' on power equipment, which can deeply explore 'lesions' that cannot be seen by the naked eye.
What are the "behind the scenes drivers" that affect partial discharge?
The occurrence of partial discharge is not accidental, it is influenced by various factors, just like how human illness is closely related to lifestyle habits, environment, etc
Deterioration of insulation materials: Over time, insulation materials will age, crack, and form discharge channels.
Equipment structural defects: Small gaps, bubbles, or improper installation during the manufacturing process can all become "hotbeds" for discharge.
Environmental factors such as humidity, dust, salt spray, etc. can reduce insulation performance and increase discharge risk.
Operating status: Overload, voltage fluctuations, etc. may also induce partial discharge.
What tools can help us' identify 'partial discharge?
To accurately detect partial discharge, advanced tools are indispensable. In addition to our protagonist today - the digital partial discharge detector, some auxiliary methods can also be combined, such as:
Ultrasonic detector: Partial discharge generates high-frequency sound waves, which can be captured by the ultrasonic detector to assist in localization.
Infrared thermography: Partial discharge is usually accompanied by local heating, and infrared thermography can detect abnormal temperature points.
These tools work together to comprehensively evaluate the insulation condition of equipment. Wuhan UHV Power Technology Co., Ltd. has a profound technical accumulation in this field, and its developed testing equipment enjoys a high reputation in the industry.
How to better utilize digital partial discharge detectors?
To maximize the effectiveness of this' health check-up specialist ', we need to master some' usage techniques':
Regular testing: Establish a "health record" for the equipment, conduct regular testing, and promptly detect early signs.
Multi point monitoring: Install multiple sensors in key areas to achieve comprehensive coverage.
Data analysis: In depth analysis of detection data, combined with operational experience, to make accurate judgments.
Technological upgrade: Pay attention to the development of detection technology and choose devices with superior performance.
The solution provided by Wuhan UHV Power Technology Co., Ltd. can help users perform partial discharge detection more efficiently and accurately, ensuring the safe operation of power equipment.
What fields are closely related to partial discharge detection?
The importance of partial discharge detection is self-evident, and it is closely related to the following fields:
High voltage electrical appliances, such as transformers, switchgear, cables, etc., are high-risk areas for partial discharge.
Power generation equipment: Key equipment such as generators and turbines also require partial discharge monitoring.
Power grid safety: Preventing equipment failures is the foundation for ensuring the stable operation of the entire power grid.
Equipment lifespan prediction: By monitoring partial discharge, the remaining lifespan of the equipment can be more accurately evaluated.
Wuhan UHV Power Technology Co., Ltd., as a leader in the industry, is committed to providing comprehensive solutions for users.
Frequently Asked Questions (FAQ)
Q: What is partial discharge? A: Partial discharge refers to the incomplete development of corona discharge that occurs in a localized area of solid, liquid, or gas insulating media. It is an important cause of insulation aging in high-voltage electrical equipment.
Q: How does the digital partial discharge detector work? A: It captures electromagnetic pulses, sound waves, or optical signals generated by partial discharge through high-sensitivity sensors, converts them into digital signals for analysis and processing, and thus determines the type, intensity, and location of discharge.
Q: What factors can cause partial discharge? A: Defects and aging of insulation materials, unreasonable equipment structure, and environmental factors such as humidity and pollution can all lead to partial discharge.
Q: What are the hazards of partial discharge to power equipment? A: Long term operation of partial discharge can cause gradual deterioration of insulation materials, ultimately leading to insulation breakdown, equipment damage, and even large-scale power outages.
Q: Why choose testing equipment from Wuhan UHV Power Technology Co., Ltd? A: Wuhan UHV Power Technology Co., Ltd. has rich experience and professional technology in the field of power detection. Its products have stable performance, high detection accuracy, and can provide reliable solutions for users to ensure the safe operation of power equipment.
